Kandao Meeting Omni

Step 1:

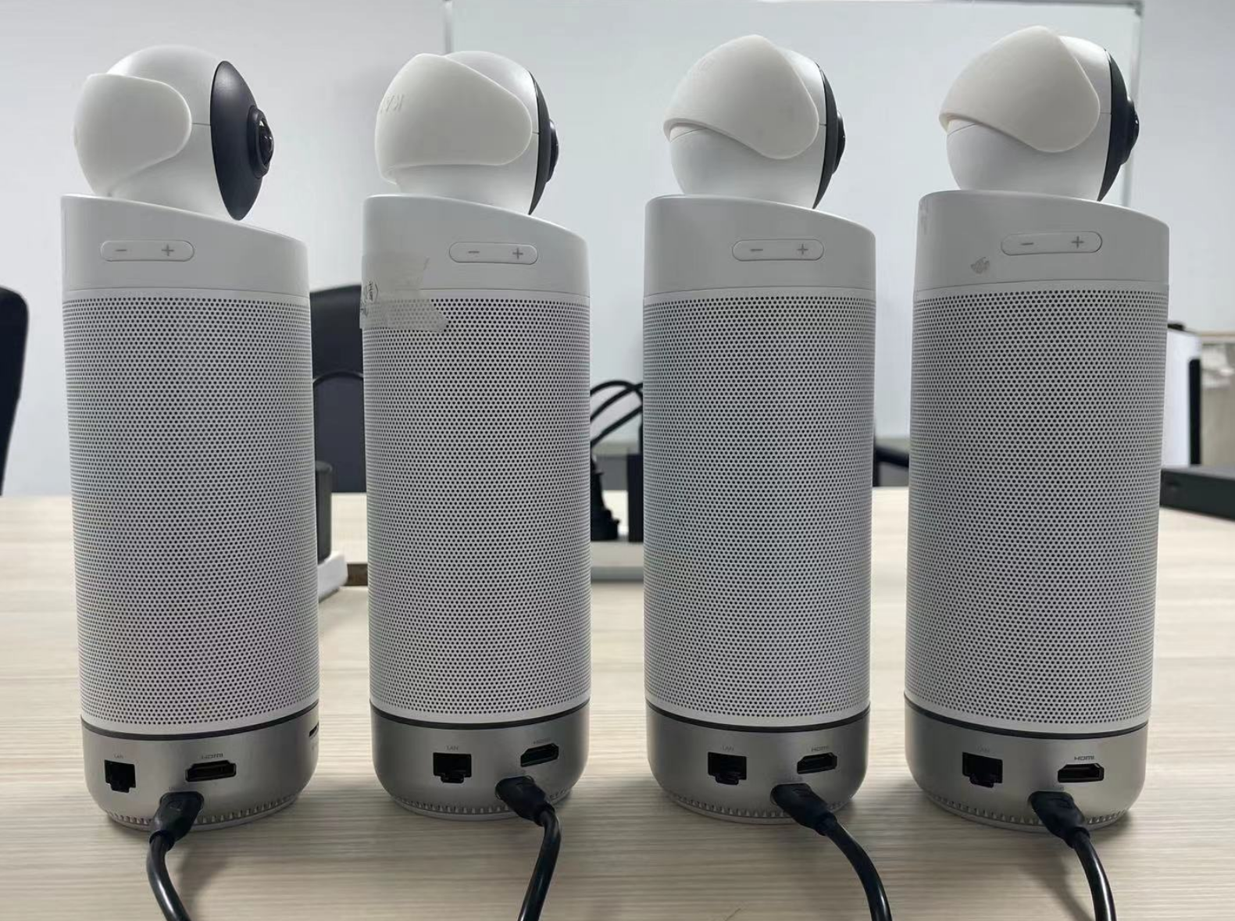

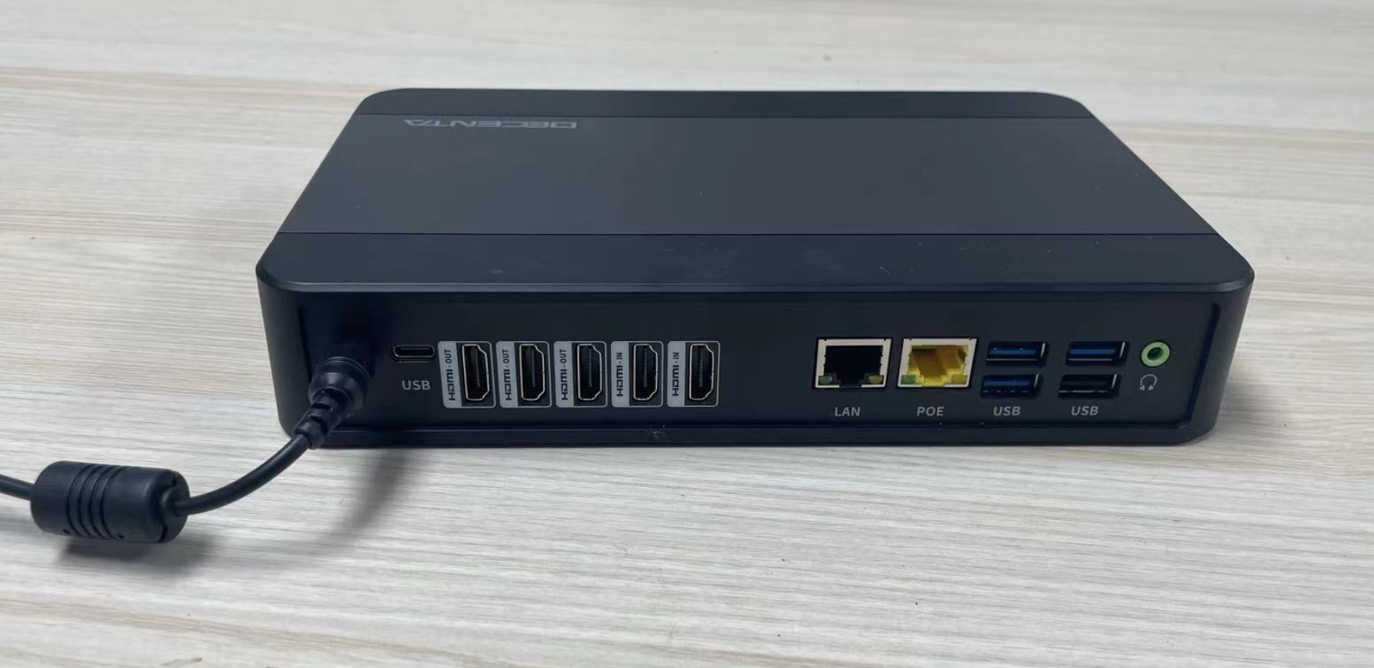

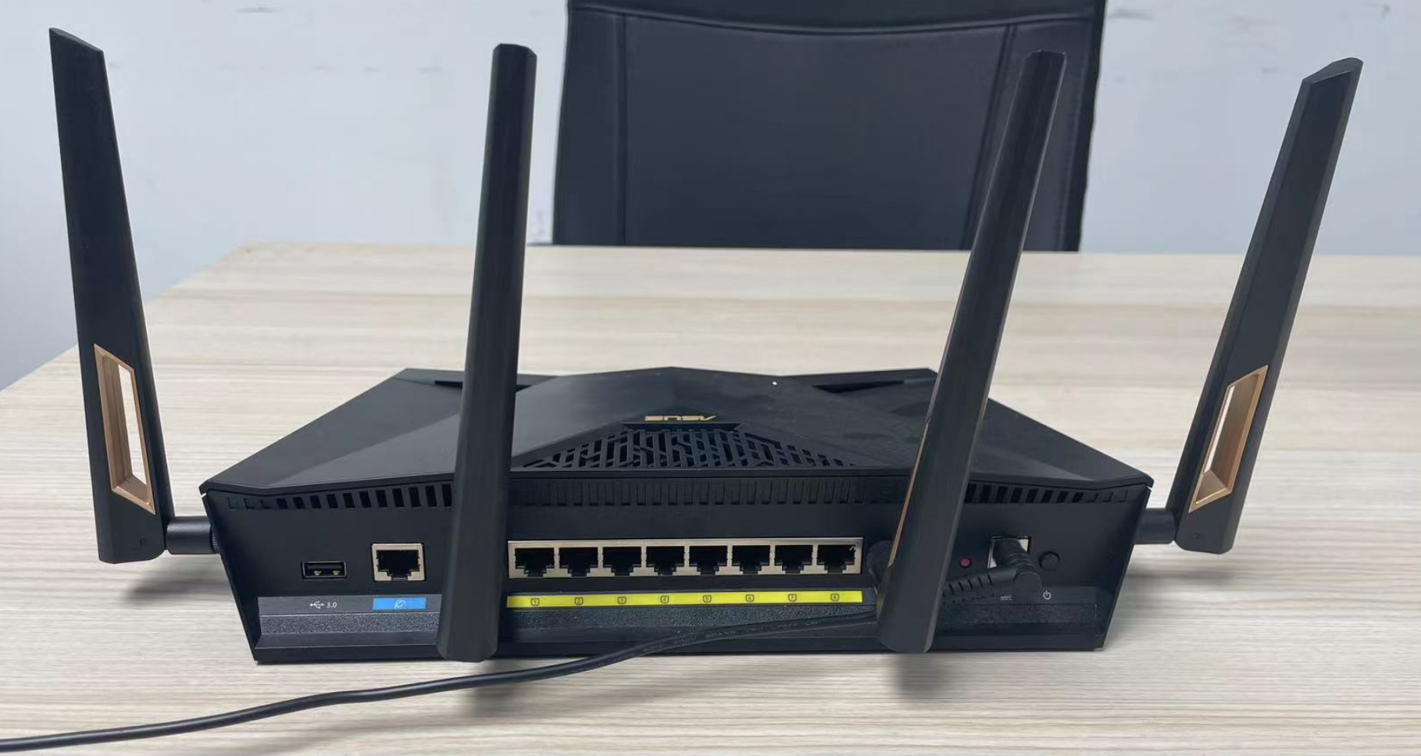

Connect all the devices to the power supply with their power cables.

news-omni2-1-0

news-omni2-2-1

news-omni2-3-2

Step 2:

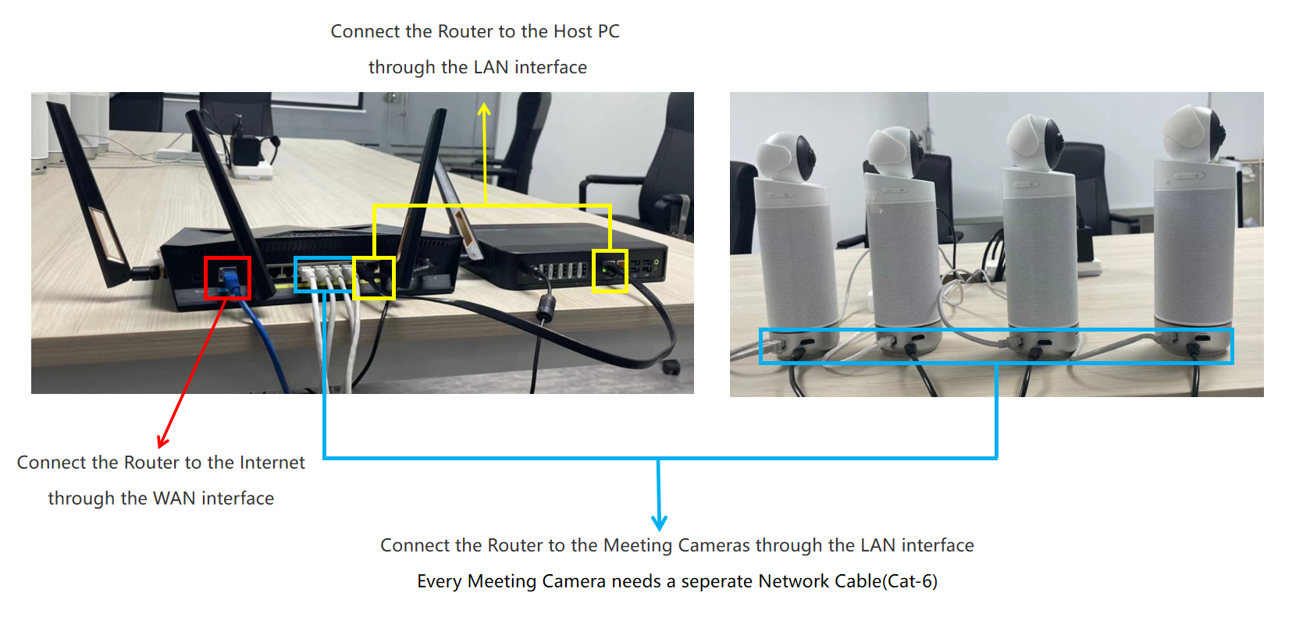

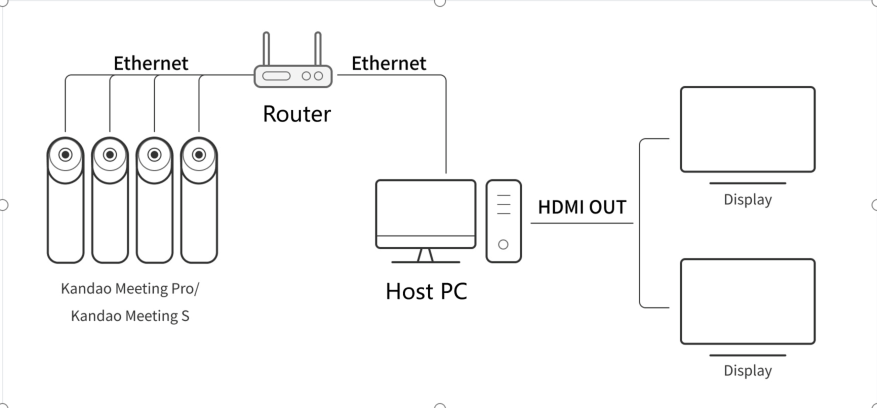

Connect the Router to the meeting cameras,the host PC,and the Internet.

news-omni2-4-3

news-omni2-5-4

Step 3:

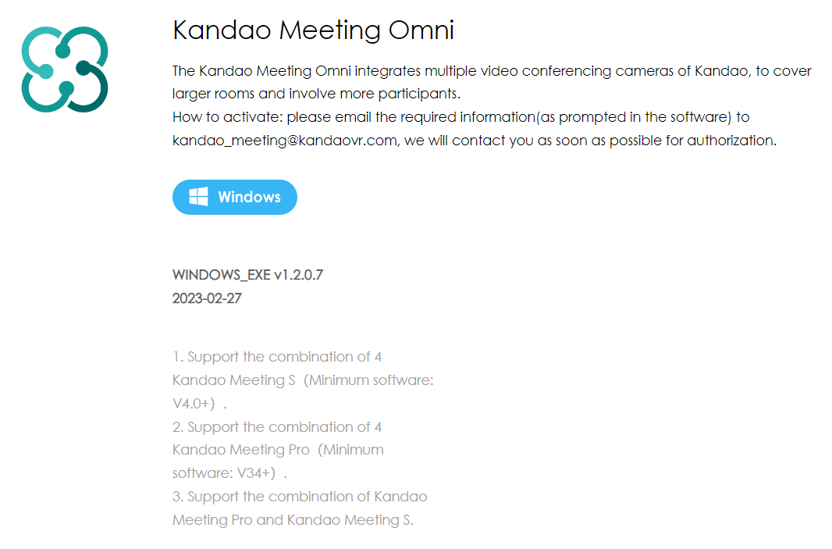

Turn On all the devices and download/install the [KanDao Meeting Omni]

Download Link: https://www.kandaovr.com/download/

news-omni2-6-5

Step 4: Software Activation

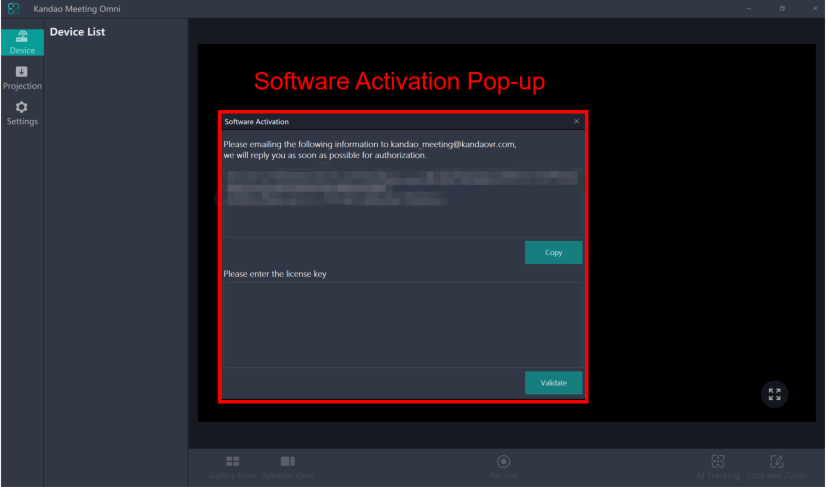

  • When the Meeting Omni software starts for first-time, a pop-up will apear and require “Software Activation”.

 news-omni2-7_e566b27e-bcaf-4a1c-ace5-5720d929990a-6

  • Please copy the encryption information and email it to kandao_meeting@kandaovr.com.

news-omni2-8-7

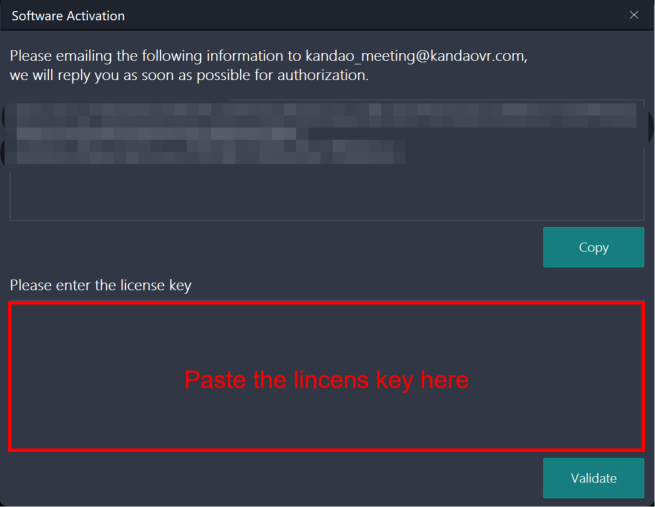

  • After receiving the license key, please paste it into the corresponding area and click “Validate” to activate the software.

news-omni2-9-8

Step 5:Adding Devices

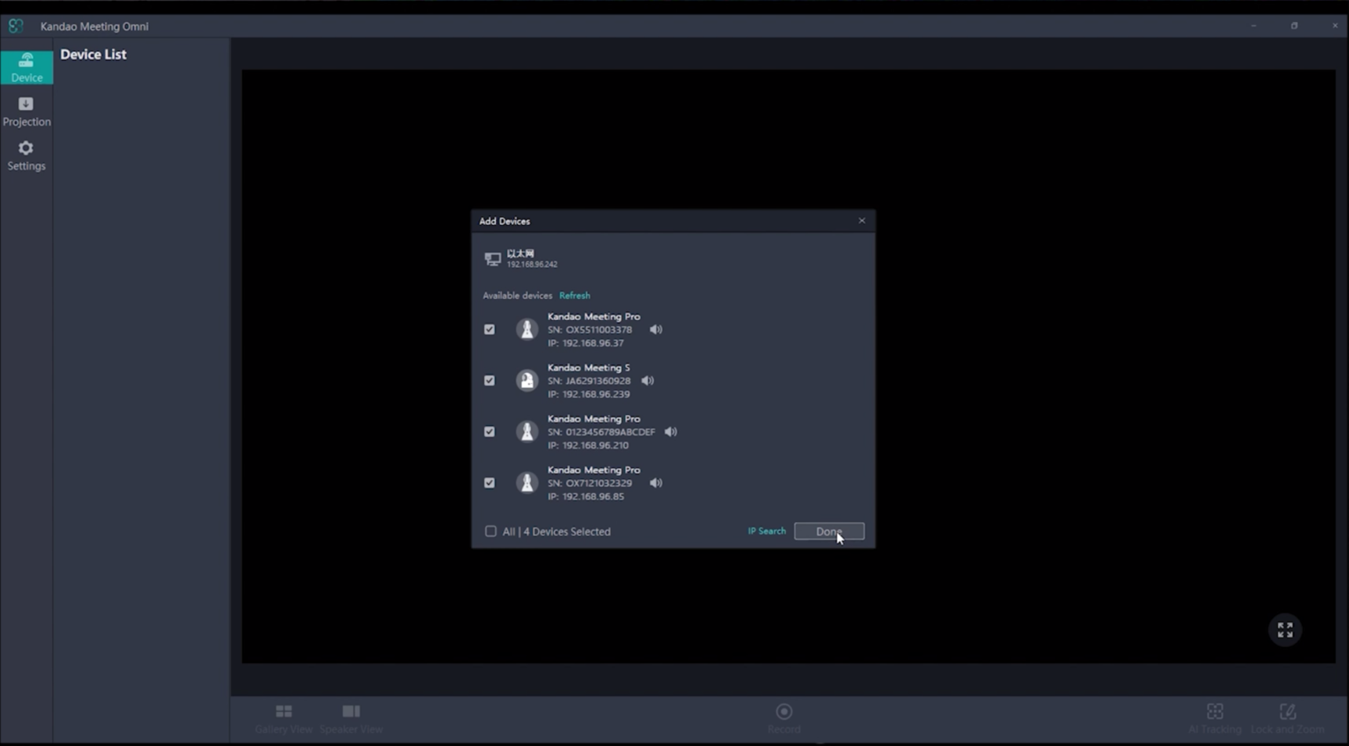

  • Meeting Omni will automatically detect and list the available devices.
  • Select up to 4 devices and press “Done” button.

news-omni2-10-9

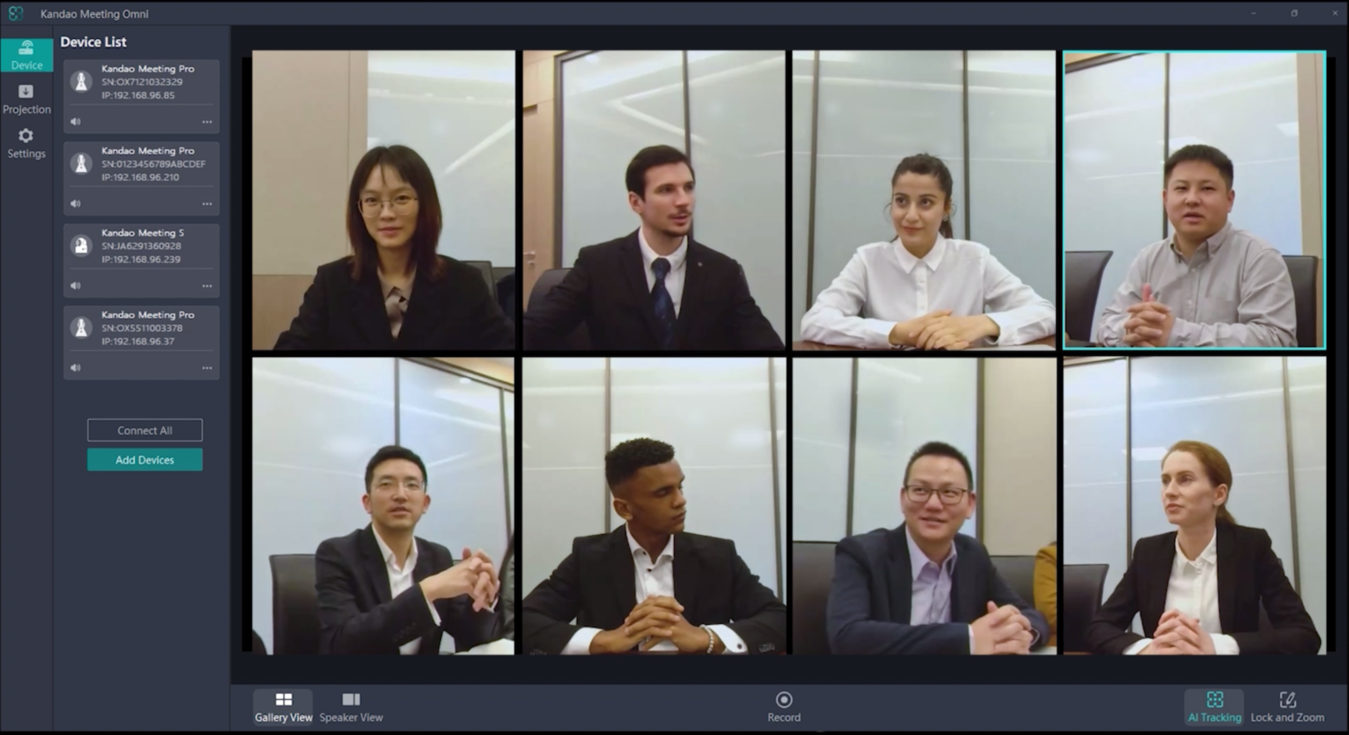

  • The preview of Meeting Omni will be shown automatically on the screen. It means that the deployment of Meeting Omni succeeds.

 news-omni2-11_41e3ced9-5677-425a-8338-1cace1f1429c-10
